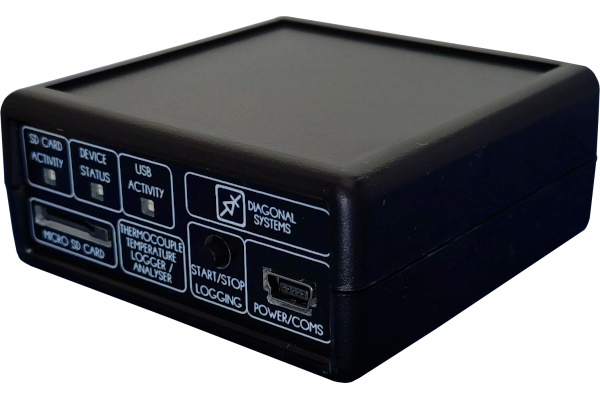

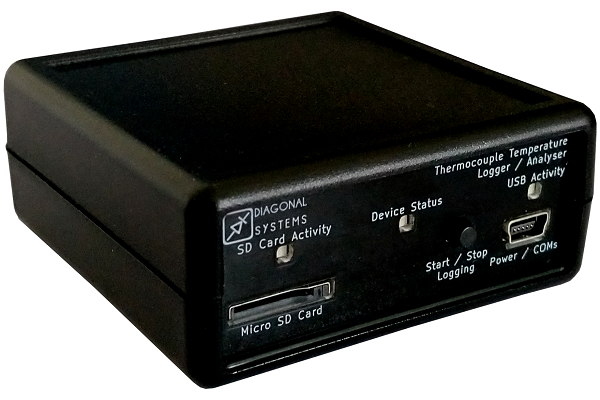

Thermocouple Temperature Logger

Product Details

SPECIFICATIONS

General specifications

Versions available for most common thermocouple types: K-, J-, N-, T-, S-, R-, and E-Type. (Contact us for availability).
High performance 32 bits automotive microcontroller.
Push-push micro SD Card socket.
3 LEDs for indicating faults and activity: Device status. USB activity. SD Card activity.
Start / Stop logging push button.
Thermocouples connectors: 5 x 2 ways pluggable terminal block connectors (included with the device).
Real Time Clock Calendar.
Replaceable CR1220 battery for the internal Real Time Clock Calendar.
Small form factor: 66.22 x 67.22 x 28.5 mm (2.61 x 2.65 x 1.16 in).

Thermocouple intputs

Data logging

Easy external access to the micro SD Card.
Supports up to 32GB micro SD Cards (FAT32).
Maximum file size 4GB.
File size: aprox. 1MB per 10,000 samples.
Data logged into "CSV" file (comma-separated values) easily importable to any spreadsheet program.
Configuration:
- Logging interval: Minimum: 20 ms. Maximum: 1 hour.
- Time for creating a new file (Hourly, Daily, Weekly, Monthly).
- Number of floating zeros from the temperature values.
- Temperature measured in degrees: Celsius (°C), Fahrenheit (°F) or Kelvin (°K).

Software

Windows software provided with the device.
Plotting 1 sample per second.
Save the plotting graph as a "PNG" format image.
Save the temperature values as a "CSV" file (comma-separated values).
Configuration:
- Temperature measured in degrees: Celsius (°C), Fahrenheit (°F) or Kelvin (°K).
- Plotting seconds: buffer the latest numbers of samples.
- Name each temperature sensor.

Electrical characteristics

* SD Card, Real Time Clock battery (1220 coin cell) and USB mini B cable not included.
