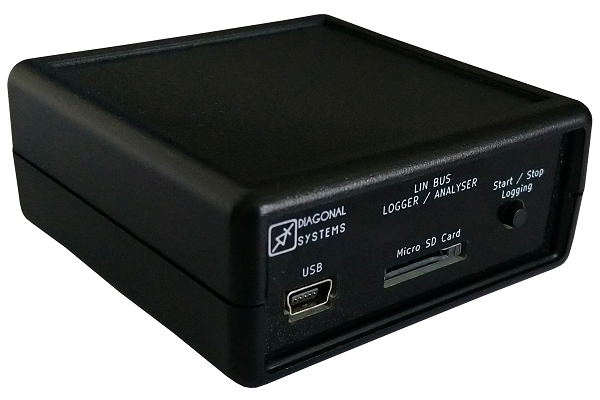

SPECIFICATIONS

• Integrated configurable termination resistor for master or slave configuration.
• Push-push micro SD Card socket.
• USB mini B connector.
• 4 ways pluggable terminal block connector: Power supply. LIN Bus network.
• Firmware update over USB.
• 4 LEDs for indicating faults and activity: Device status. LIN Bus activity. USB activity. SD Card activity.
• Small form factor: 66.22 x 67.22 x 28.5 mm (2.61 x 2.65 x 1.16 in).
• Real Time Clock Calendar.
• Replaceable CR1220 battery for the internal Real Time Clock Calendar.
• High performance 32 bits automotive microcontroller.

LIN Bus

• LIN 2.x/ISO 17987-4:2016 (12 V)/SAE J2602 compliant.
• Configurable baud rate up to 20 kBd.
• Configurable LIN Bus break detect: 10 or 11 bits.
• Very high electromagnetic immunity (EMI).
• Very high ESD robustness: 8 kV according to IEC 61000-4-2 for pins LIN and VBAT.
• Bus terminal and battery pin protected against transients in the automotive environment (ISO 7637).
• Bus terminal short-circuit proof to battery and ground.
• Thermally protected.

Data logging

• Easy external access to the micro SD Card.
• Supports up to 32GB micro SD Cards (FAT32).
• Maximum file size 4GB.
• File size: aprox. 750 kB per 10,000 LIN Bus messages.
• Data logged to "CSV" files (comma-separated values) easily importable to any spreadsheet program.
• Configuration:
  • Time for creating a new file (Hourly, Daily, Weekly, Monthly).

Software

• Save the received LIN Bus messages to "CSV" files (comma-separated values).
• Save and load the transmitted LIN Bus messages.
• Maximum messages to transmit: 20.
• Configurable repeating time for the transmitted messages.
• Transmitted messages from 0 to 8 Bytes with or without Checksum.

Electrical characteristics

• Power from USB or from an external power supply.
• Wilde range voltage supply input: from 7V to 28V DC.
• Low power consumption: max 39mA @ 12V (0.46W).
• Reverse power supply protection.

* SD Card, Real Time Clock battery (1220 coin cell) and USB mini B cable not included.
