• Full isolation from USB and CAN Bus.
• Power and PC communications over USB mini B connector.
• Small form factor: 66.22 x 67.22 x 28.5 mm (2.61 x 2.65 x 1.16 in).
• High performance 32 bits automotive microcontroller.
• 3 LEDs for indicating faults and activity: Device status. CAN Bus activity. USB activity.

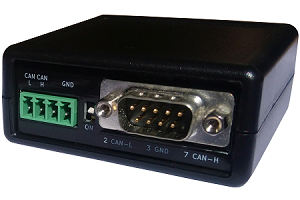

• Pluggable terminal block and DB-09 connectors to be used for the CAN Bus.

• Fully ISO 11898-2:2003 compliant.
• Supports Standard CAN 2.0A (11 bits ID) and Extended CAN 2.0B (29 bit ID).
• Configurable CAN Bus speed (20, 33.333, 47, 50, 83, 95, 100, 250, 500, 800, 1000 kbps).
• Configurable 120 Ohms termination resistor.

• Configurable filters based on the message ID.
• Decode the received CAN Bus messages based on the CAN Bus ID.
• Save the received CAN Bus messages to "CSV" files (comma-separated values).
• Save and load the transmitted CAN Bus messages.
• Maximum messages to transmit: 20.
• Configurable repeating time for the transmitted messages.

• Low power consumption: 78mA @ 5V (0.39W).
• CAN Bus 50-kV/μs Typical Transient Immunity.
• CAN Bus-Fault Protection of –27 V to 40 V.
• Isolation Barrier: DCDC 1 kV, CAN Bus 2500 kV.

* USB cable not included.
