SPECIFICATIONS

• Fully configurable via USB with a Windows application.

• Supports Standard CAN 2.0A (11 bits ID) and Extended CAN 2.0B (29 bit ID).
• Configurable CAN Bus speed (20, 33.333, 45, 50, 80, 90, 100, 250, 500, 800, 1000 kbps).
• Configurable filter for logging the desirable CAN Bus messages based on the message ID.

• Configurable 120 Ohms internal termination resistor.

• High Electrostatic Discharge (ESD) handling capability on the Bus pins.

• ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 fully compliant CAN Bus transceiver.

• AEC-Q100 qualified CAN Bus transceiver.

• Contact rating: 5A 250VAC/30VDC.
• Recommended continuous contact rating: 3A 250VAC/30VDC.
• Up to 20 millions operations (empty load).

• Up to 100,000 operations with a resistive load (3A 250VAC / 30VDC).

• Maximum switching voltage: 250VAC / 125VAC @ 0.3A.
• Maximum switching current: 5A.
• Maximum switching power: 1250VAC / 150W.
• Insulation resistance: 1000MΩ @ 500VDC.
• Dielectric strength between coil and contacts: 3000VAC 1min.
• Dielectric strength between open contacts: 1000VAC 1min.
• Surge voltage: 6kV (1.2 / 50 µs).
• Operate time: 10ms max.
• Release time: 5ms max.
• Shock resistance functional: 98 m/s2.
• Shock resistance destructive: 980 m/s2.
• Vibration resistance: 10Hz to 55Hz 1.5mm DA.

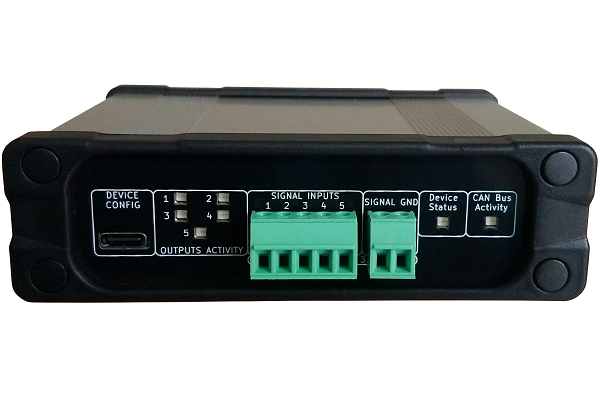

Inputs

• 5 single ended inputs.
• 1 connector 2 pin for ground signal.
• Voltage input range: 0 to 3.3V.
• 12 bits, 805 µV resolution.
• Accuracy: ±1.61 mV.
• Maximum full scale error: ±0.5% (under 23±5℃, 45%～75%RH).
• No pull-ups or pull-downs resistors on the inputs.
• Over voltage and reverse polarity protection.

• Power from USB or from an external power supply.

* USB-C cable not included.
