SPECIFICATIONS

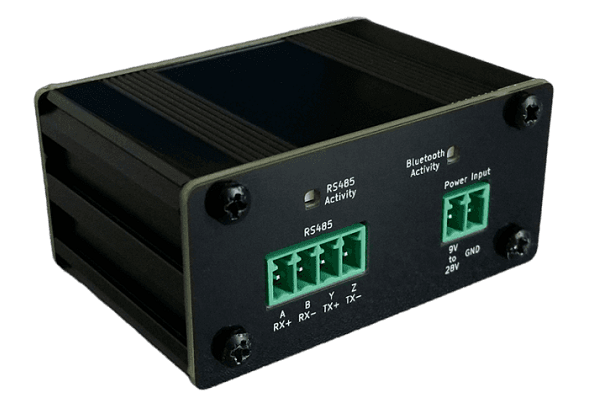

• Small form factor: 63.5 x 43.5 x 30 mm (2.5 x 1.71 x 1.18 in).
• Extruded aluminium 6063 T6 (HE9) enclosure.
• RS485 Connector: 4 pin pluggable terminal block (included with the device).
• Power Connector: 2 pin pluggable terminal block (included with the device).
• 2 LEDs for indicating faults and activity:
  • Bluetooth activity.
  • RS485 activity.
• Configuration Mode via a push button.
• DIN Rail and wall mount options (contact us).

RS485

• Configurable RS485 parameters via Software:
  • RS485 speed (2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600 kbps).
  • Data bits (5, 6, 7, 8).
  • Stop bits (1, 2).
  • Parity bits (None, Odd, Even).
• Full-Duplex or Half-Duplex RS485 functionality.
• Protection:
  • IEC 61000-4-2 (ESD): Air 15kV, Contact 8kV.
  • Compatible with IEC 61000-4-4 (EFT): 40A, 5/50ns.
  • Compatible with IEC 61000-4-5 (Surge): 24A, 8/20µs - Level 2 (Line-Ground) and Level 3 (Line-Line).
  • 600 Watts Peak Pulse Power per Line (tp = 8/20µs).
• Reduced slew-rate driver that minimizes EMI.
• Error-free data transmission up to 250kbps.
• Fail-Safe Circuitry (guarantees a logic-high receiver output when the receiver inputs are open or shorted).
• Termination resistor not included.

Bluetooth

• SIG Bluetooth LE 5.0 certification.

Electrical characteristics

• Operating voltage: 9 - 28 Vdc.
• Maximum operating voltage: 30 Vdc.
• Low power consumption: 73mA @ 12V (0.87W).
• Operating temperature: 0 °C- 70 °C.
